ZMS series is one of the unique offerings from Merino Restrooms which provides with the best of both worlds i.e. spectacular aesthetics and everlasting durability. This extensive series has changed the way restrooms were designed and is one of the most popular model among the customers. Available in wide range of designs, textures and hues, ZMS series gives the system a clean and lean look with extruded powder coated aluminium made top rail. The series gives a perfect solution to the customer without stretching their budget and compromising on quality. For the ZMS SS variant, all the major accessories are provided in stainless steel.
Fire Resistant
Abrasion Resistant
Anti Bacterial
Scratch Resistant
Durable
Easy Cleaning
Graffiti Resistant
Impact Resistant
Colors & Finishes
Technical Specifications
Material
Compact Laminate in panels. Made from solid grade compact high-pressure laminate as per IS:2046 and EN438- manufactured under high specific pressure > 5 MPa and temperature 120°C with bunch of kraft papers impregnated with thermosetting phenolic resin and decorative papers made of cellulose fibre impregnated with thermosetting melamine resin which provide superior scratch, abrasion, heat, chemical, impact, graffiti & moisture resistance along with anti-bacterial properties. Panels have a black core that when machined, presents a distinctive black edge.

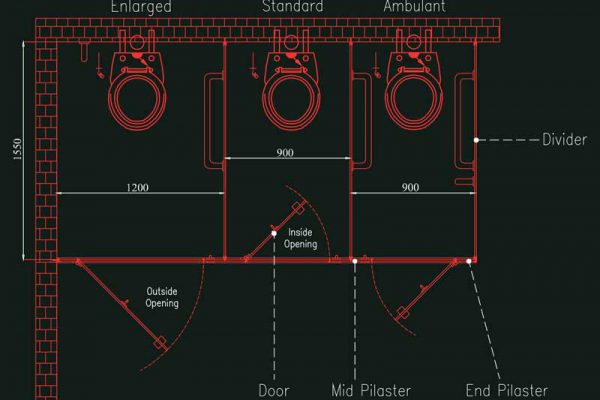

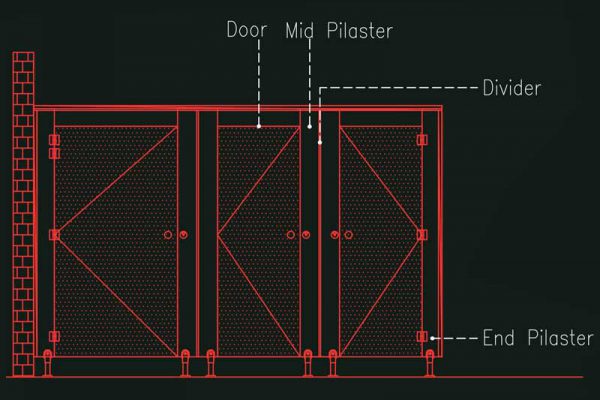

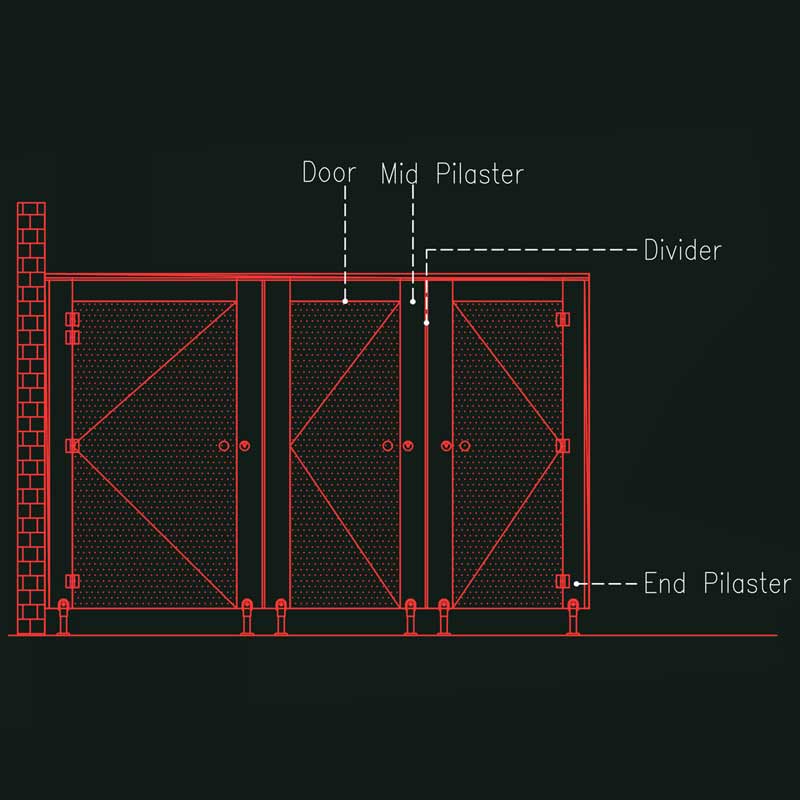

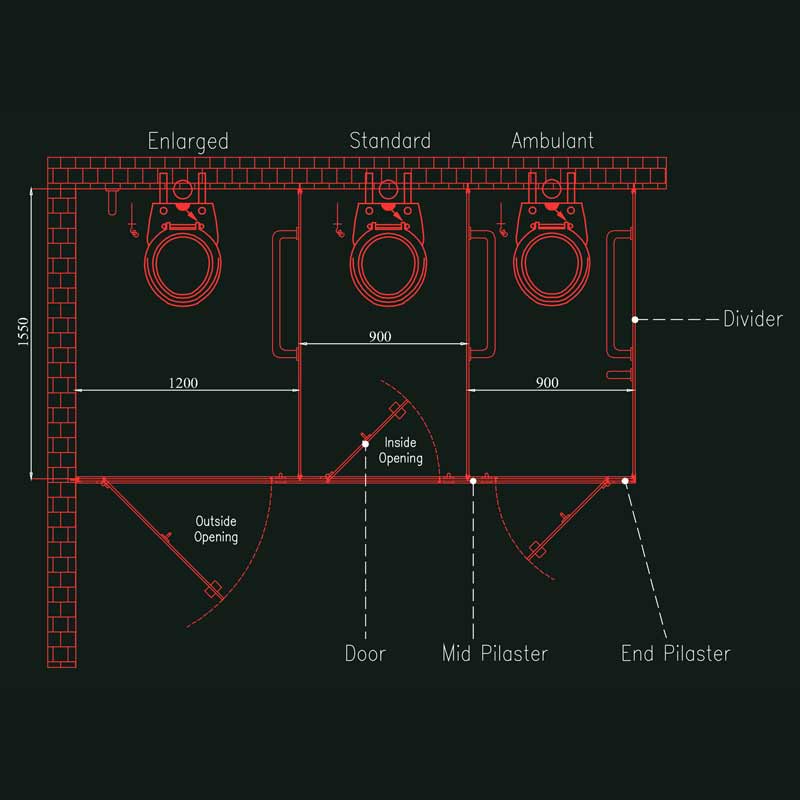

Standard dimension
2003 x 900 x 1550 (H X W X D)
Standard door dimension
1750 x 600(H X W)
All doors will be of single colour and made of 12 mm thick Merino HPL compact panel. The doors will have chamfered edges. Each door will be supported by 3 stainless steel made hinges affixed to the pilasters. Stainless steel made coat hook and lock set are provided with each door.
Standard pilaster dimension
1830 x 300 (H X W)
All pilasters will be made of 12 mm thick Merino HPL compact panel with chamfered edge and completed with stainless steel made thumb turn Lock set (comprised of Thumb turn and occupancy indicator). Aluminium made door stopper profiles with rubber linings for dampening the noise while door closing will be provided at the vertical ends of the pilasters.

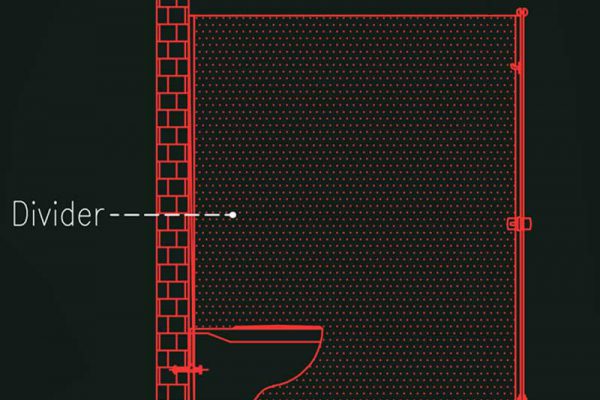

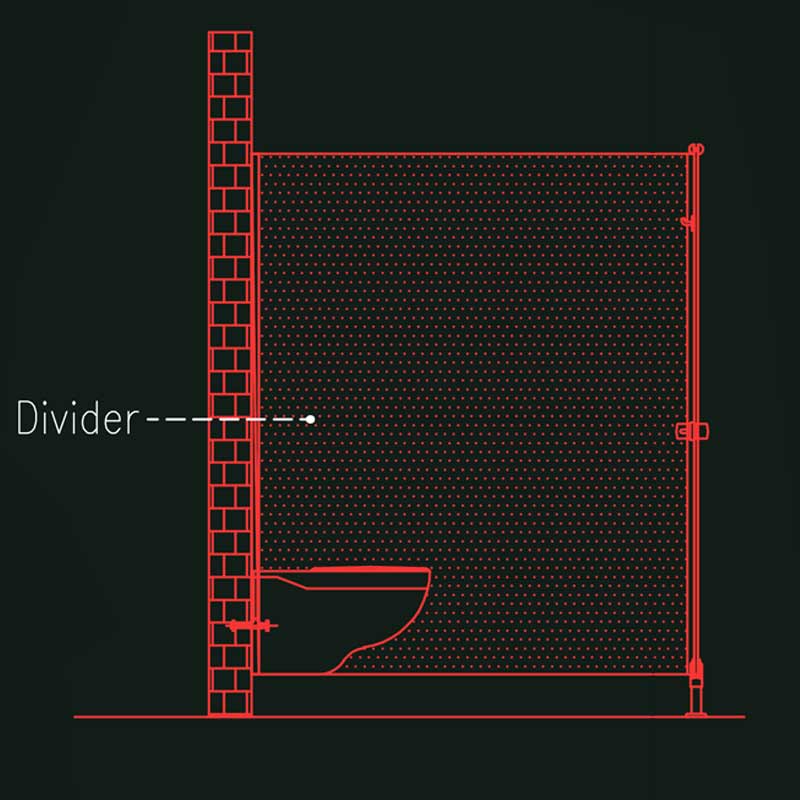

Standard divider dimension
1775 x 1550 (H X W)
All intermediate partitions or dividers will be made of 12 mm thick Merino HPL compact laminate panels. They are affixed with stainless steel made U-channel at their ends for ultimate stability of the system.
Standard bottom gap
Standard bottom gap is 150
All measurement in millimeters.
Accessories
- Hardware and accessories in Stainless Steel

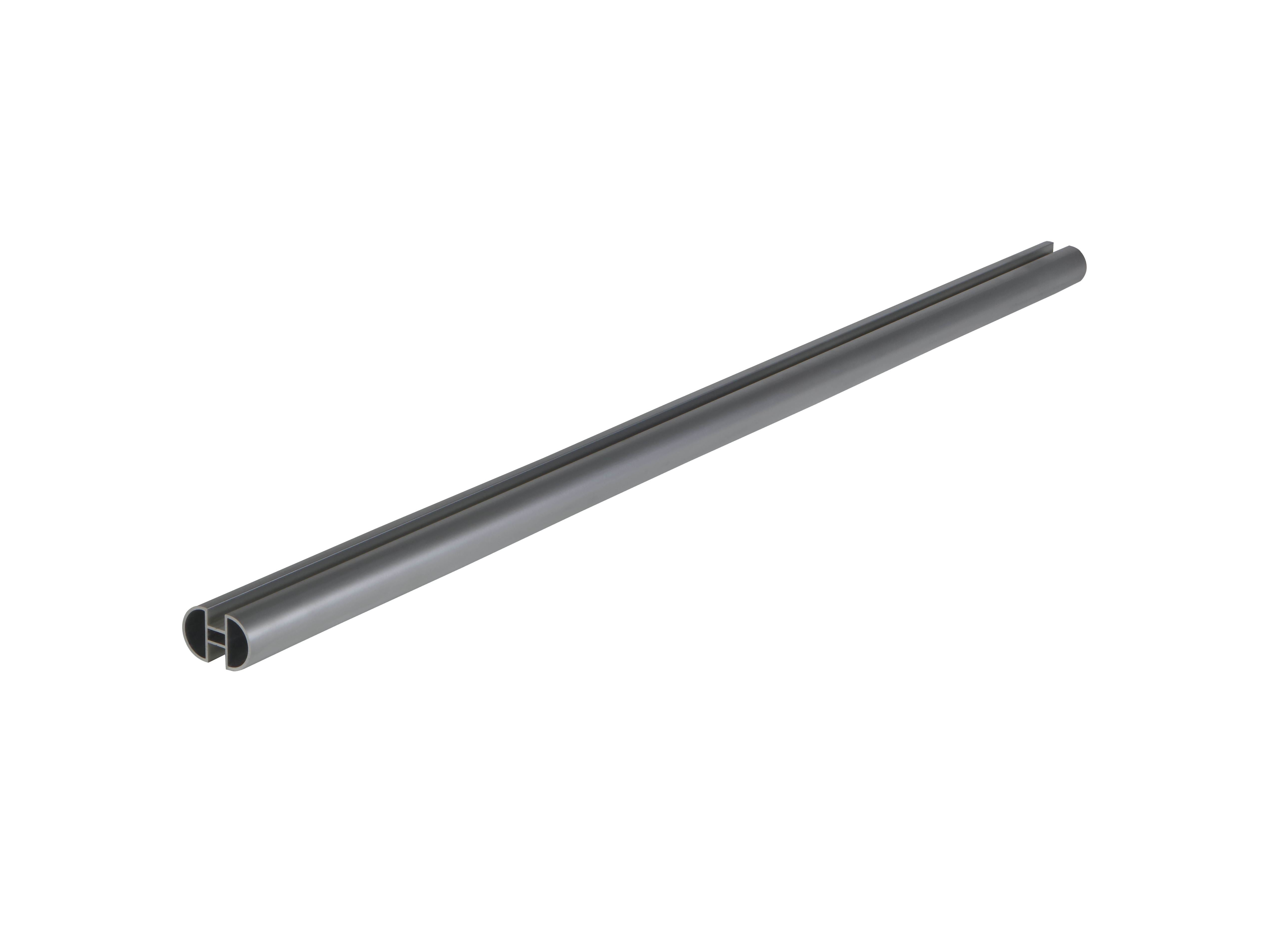

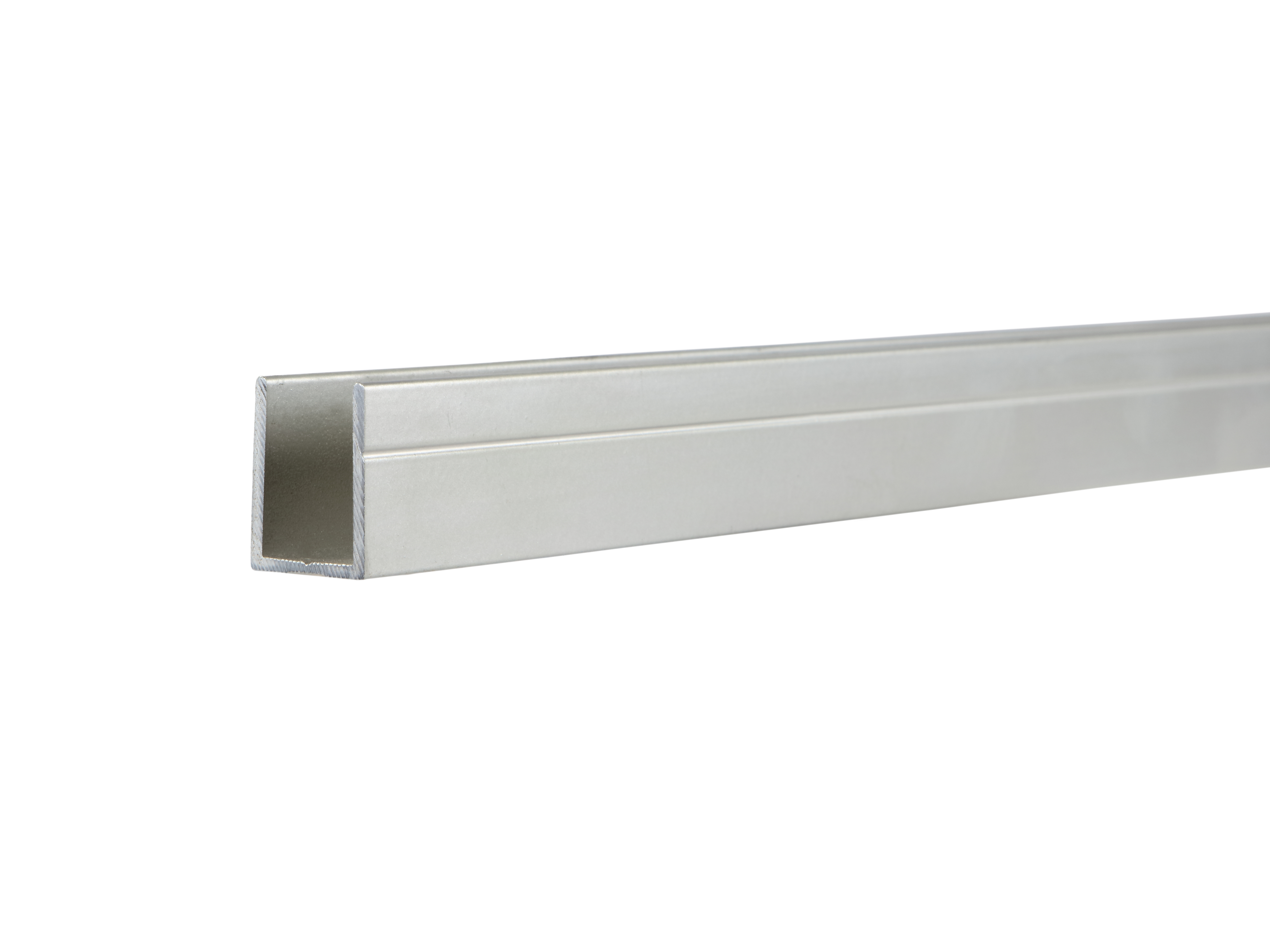

- Semi-spherical (Top) head frame structure for surface protection. Size to be 50mm x 32mm x 1.8mm. Corner joinery section, Size to be 40mm x 16.5mm x 1.8mm. U-Channel Wall joinery section, Size to be 22mm x 16mm x 1.8mm.

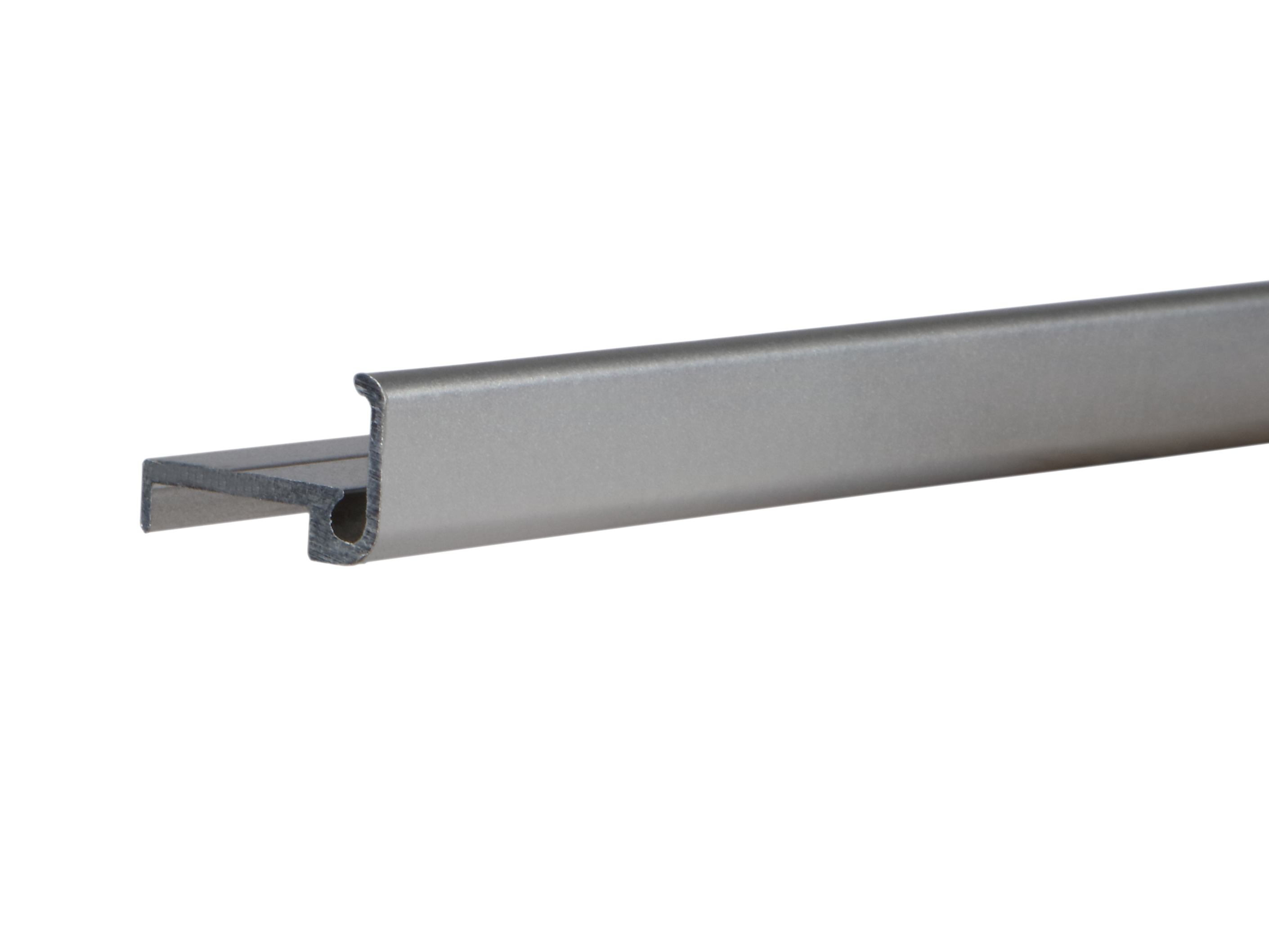

- Door stopper section, Size to be 21mm x 12.5mm x 1.6mm.

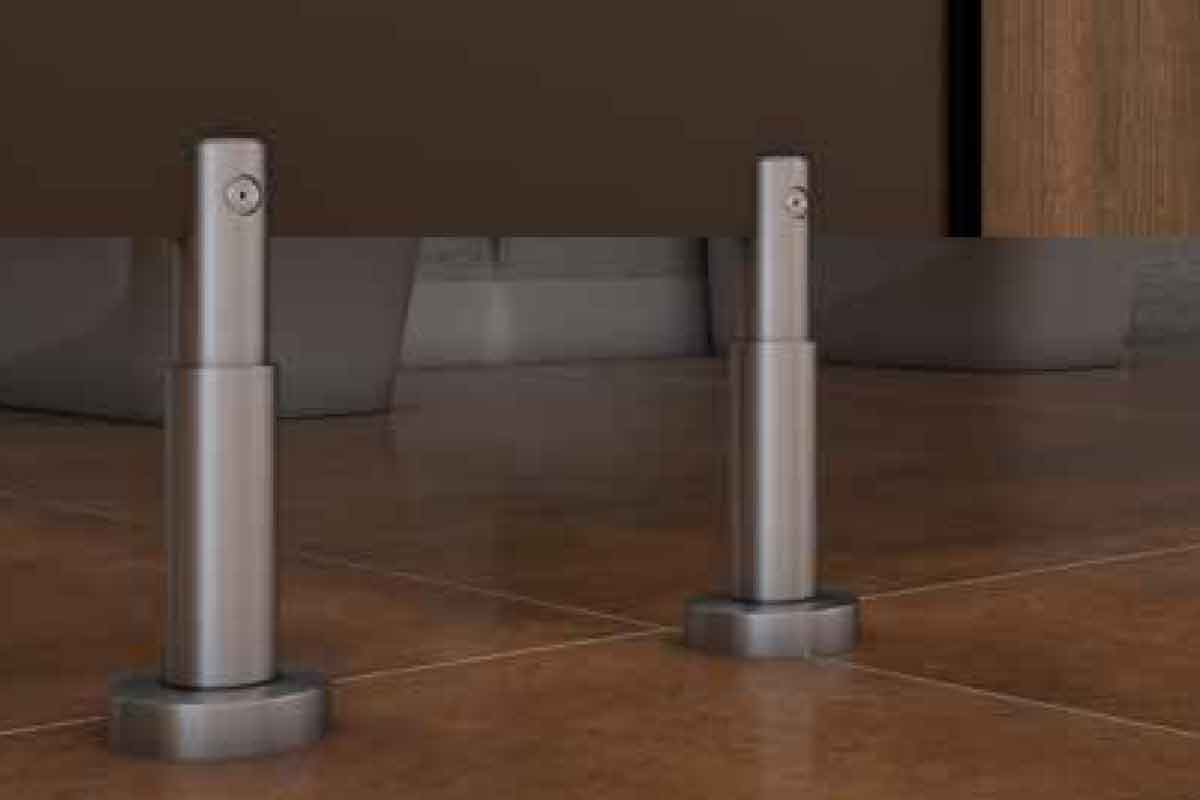

- Adjustable Palm Design Pedestal Footing of base diameter 60mm made from Stainless steel grade 316 giving a clearance height of 150 mm. Surface finish to be Lacquer type.
- Spring loaded Butt Hinges made from Stainless steel grade 304. Surface finish to be matt type. Covers to be lacquer coated.
- Coat hook with rubber stopper made from Stainless steel grade 304. Surface finish to be matt type.
- Round Door knob diameter 30 mm with grooves for better hand grip made from Stainless steel grade 304. Surface finish to be matt type.
- Rotating Thumb-turn locking system with privacy indicator made from Stainless steel grade 304. Surface finish to be matt type.
- Stainless steel grade 304 screws.
- Anti-rotation Nylon polyamide grade6- expandable wall plugs.
- The Work shall complete as per drawing, under supervision of engineer in charge and company experts

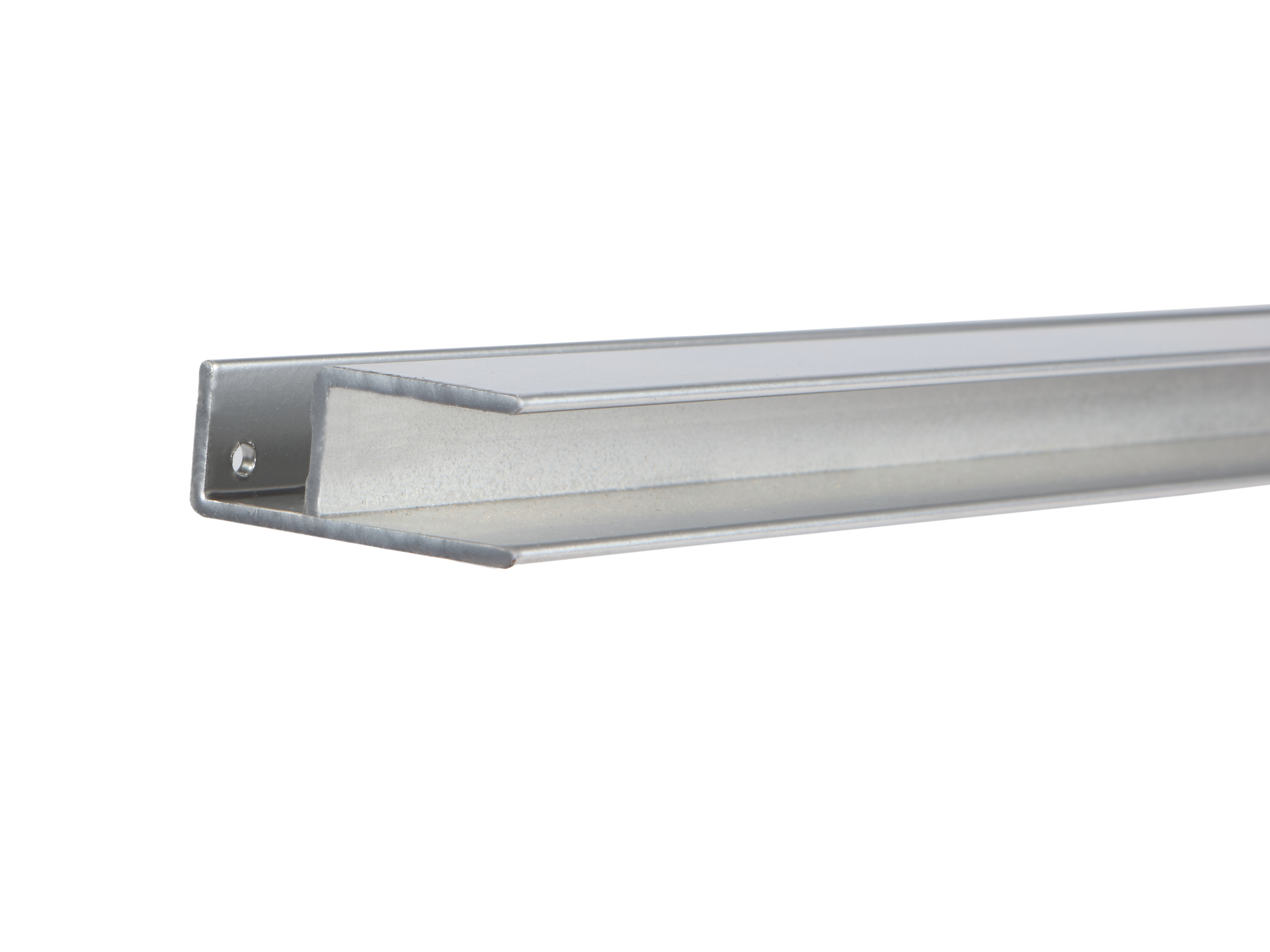

- Extruded grade aluminium alloy and epoxy powder coated (colour as per specifications)
